AOC P1 X24P1 computer monitor 61 cm (24") 1920 x 1200 pixels WUXGA LED Black

Description

24”, 3-sides frameless IPS display with 16:10 aspect ratio
The 16:10 aspect ratio and 1920x1200 resolution of the 24" sized, 3-sides frameless X24P1 is suited perfectly for productivity tasks (spreadsheets, texts). X24P1 comes with a fully adjustable stand with 150 mm height range, capable of pivot mode. It is also fully equipped with VGA, DVI, HDMI and DisplayPort inputs, a built-in USB 3.0 hub and speakers.

More Information

SKU	X24P1
EAN	4038986146241
Manufacturer	AOC
PDF Url	https://objects.icecat.biz/objects/
In Stock	Y

Tech Specs

Audio
Built-in speaker(s)	Yes
RMS rated power	2 W
Performance
Built-in speaker(s)	Yes
RMS rated power	2 W
Mean time between failures (MTBF)	50000 h
Built-in microphone	No
Built-in camera	No
NVIDIA G-SYNC	No
Compatibility	VESA-P1

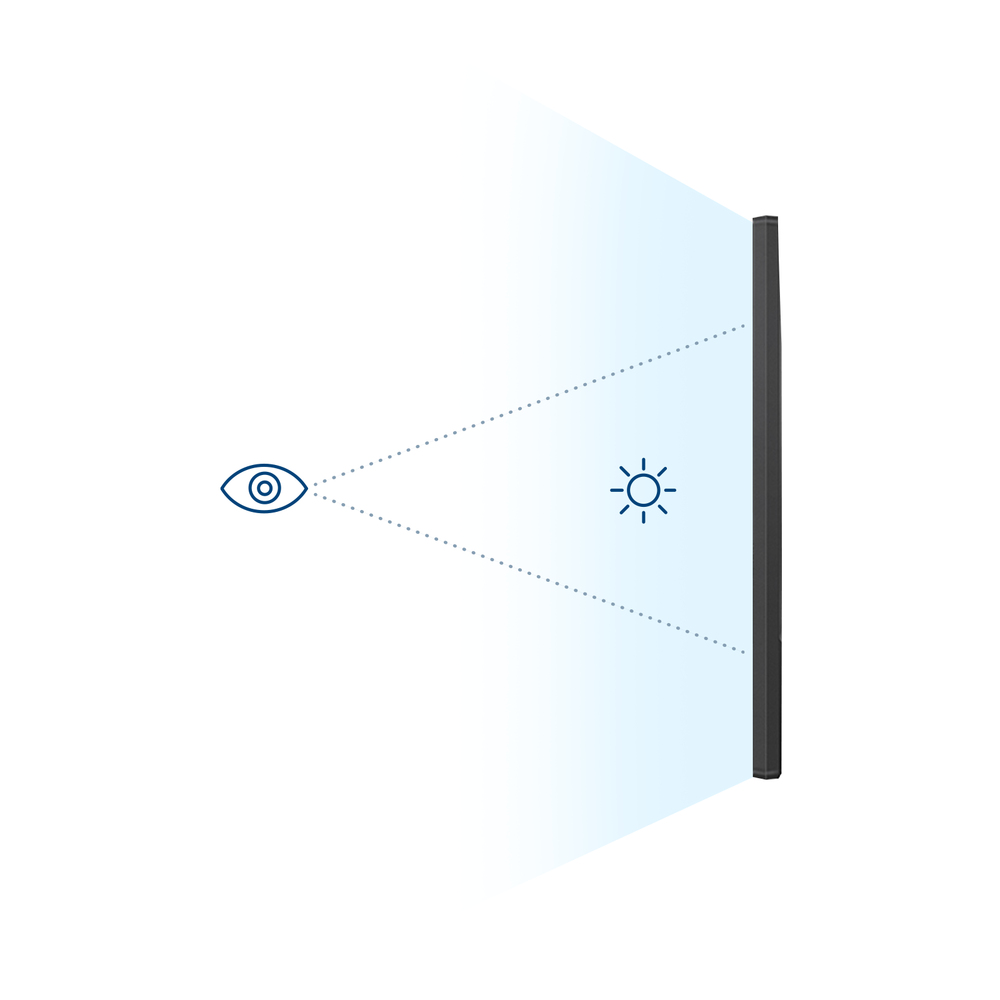

Low Blue Light technology	Yes
Flicker-free technology	Yes
Fast charging	Yes
Display
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:10
Maximum refresh rate	60 Hz
sRGB coverage (typical)	99%
Adobe RGB coverage	77%
Display surface	Matt
HD type	WUXGA
Display technology	LED
Contrast ratio (dynamic)	50000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.27 x 0.27 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Aspect ratio	16:10
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Digital horizontal frequency	30 - 83 kHz
3D	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
Backlight type	W-LED
Display resolution	1920 x 1200 pixels
Response time	4 ms
Display diagonal	61 cm (24")
Contrast ratio (typical)	1000:1
Surface hardness	3H
Touchscreen	No
Panel type	IPS
Colour depth	6 bit
Display diagonal (metric)	60.96 cm
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	16
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and Play	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in microphone	No
Built-in camera	No
TV tuner integrated	No
Power
Power cable length	1.8 m
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	No
Power consumption (standby)	0.32 W
Power consumption (typical)	16.73 W
Power consumption (off)	0.23 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
European Product Registry for Energy Labelling (EPREL) code	405263
Design
Market positioning	Business
Heavy metals free	Hg (mercury)
Feet colour	Black
Certification	ISO 9241-307
Product colour	Black
Front bezel colour	Black
Detachable stand	Yes
Mean time between failures (MTBF)	50000 h
Exterior finish type	Textured
Bezel thickness type	Frameless
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	4
Headphone out	Yes
DVI port	Yes
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Audio input	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Microphone in	Yes
HDMI version	1.4
DisplayPort version	1.2
TV tuner
TV tuner integrated	No
Technical details
External power adapter	No
Height (without stand)	354.4 mm
Depth (without stand)	46.5 mm
Width (without stand)	533.5 mm
Feet colour	Black
Cable lock slot	Yes
On/off switch	Yes
Mean time between failures (MTBF)	50000 h
Built-in microphone	No
Product colour	Black
Recyclable packaging material	100%
Front bezel colour	Black
Doesn't contain	PVC/BFR
Compliance certificates	WEEE, REACH
Weight (with stand)	5.5 kg
Surface hardness	3H
Touchscreen	No

Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-175 - 175°
Tilt angle range	-5 - 35°
Height adjustment	15 cm
Pivot	Yes
On Screen Display (OSD)	Yes
Pivot angle	1 - 90°
Number of OSD languages	16
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and Play	Yes
Height adjustment	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
On/off switch	Yes
Operational conditions
Non-operating altitude	5000 - 12192 m
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 5000 m
Packaging content
Stand included	Yes
Power cable length	1.8 m
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, USB
Audio cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
USB cable length	1.8 m
Weight & dimensions
Height (without stand)	354.4 mm
Depth (without stand)	46.5 mm
Width (without stand)	533.5 mm
Width (with stand)	535.2 mm
Depth (with stand)	203 mm
Height (with stand)	533.5 mm
Weight (with stand)	5.5 kg
Weight (without stand)	3.71 kg
Package width	752 mm
Package depth	168 mm
Package height	422 mm
Package weight	7.5 kg
Packaging data
Package width	752 mm
Package depth	168 mm
Package height	422 mm
Package weight	7.5 kg
Package type	Box
USB cable length	1.8 m
Stand included	Yes
Power cable length	1.8 m
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, USB
Audio cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
Sustainability
Doesn't contain	PVC/BFR
European Product Registry for Energy Labelling (EPREL) code	405263
System requirements
Compatibility	VESA-P1
Recycling data
Post-consumer recycled plastic	85%
Logistics data
Harmonized System (HS) code	85285210
Other features
Height (without stand)	354.4 mm
Depth (without stand)	46.5 mm
Width (without stand)	533.5 mm
Compatibility	VESA-P1
Surface hardness	3H
Energy efficiency scale	A to G
Power cable length	1.8 m
On/off switch	Yes
Mean time between failures (MTBF)	50000 h
TV tuner integrated	No
Recyclable packaging material	100%
Touchscreen	No
Exterior finish type	Textured
Bezel thickness type	Frameless
Light effects	No
External power adapter	No
Package type	Box
Front bezel colour	Black
Certificates
Certification	ISO 9241-307
