ARCTIC Freezer P12 Pro Reverse A-RGB 120 mm A-RGB - PWM Fan with Cable Splitter

SKU

ACFAN00322A

£14.76 £12.30

120 mm, A-RGB, 500-3000 RPM, PWM, FDB, 73 CFM, 124 m3/h, 12 V DC, 172 g, Black

Note: These items come from the EU which will take 7-10 days to be delivered

Free Delivery

For all orders over £99

30 Days Return

Return hassle free

Secure Payment

100% secure payment

Email an Expert

Speak to sales now

Free Shipping

For most orders
over £99 *

30 Days Return

Return hassle
free

Secure Payment

100% secure
payment

Email an expert

Speak to sales
now

Tech Specs

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	12 cm
Maximum airflow	73 cfm
Airflow	124 m³/h
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	5
Fan static pressure	4.5 mmH2O
Fan speed (min)	500 RPM
Fan speed (max)	3000 RPM
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Illumination colour	Multi
Product colour	Black
Cable length	0.48 m
Illumination LED	Yes
Number of fan blades	5
LED connector type	3-pin + 3-pin
Technical details
Type	Fan
Fan diameter	12 cm
Maximum airflow	73 cfm
Airflow	124 m³/h
Number of fans	1 fan(s)
Cable length	0.48 m
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Starting voltage	3.5 V
LED voltage	5 V
Fan voltage	12 V
Fan current	0.4 A

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 27 mm
Package depth	127 mm
Package width	125 mm
Package height	32 mm
Fan weight	172 g
Package weight	206 g
Cable length	0.48 m
Packaging data
Package depth	127 mm
Package width	125 mm
Package height	32 mm
Package weight	206 g
Indication
Illumination colour	Multi
Other features
LED voltage	5 V

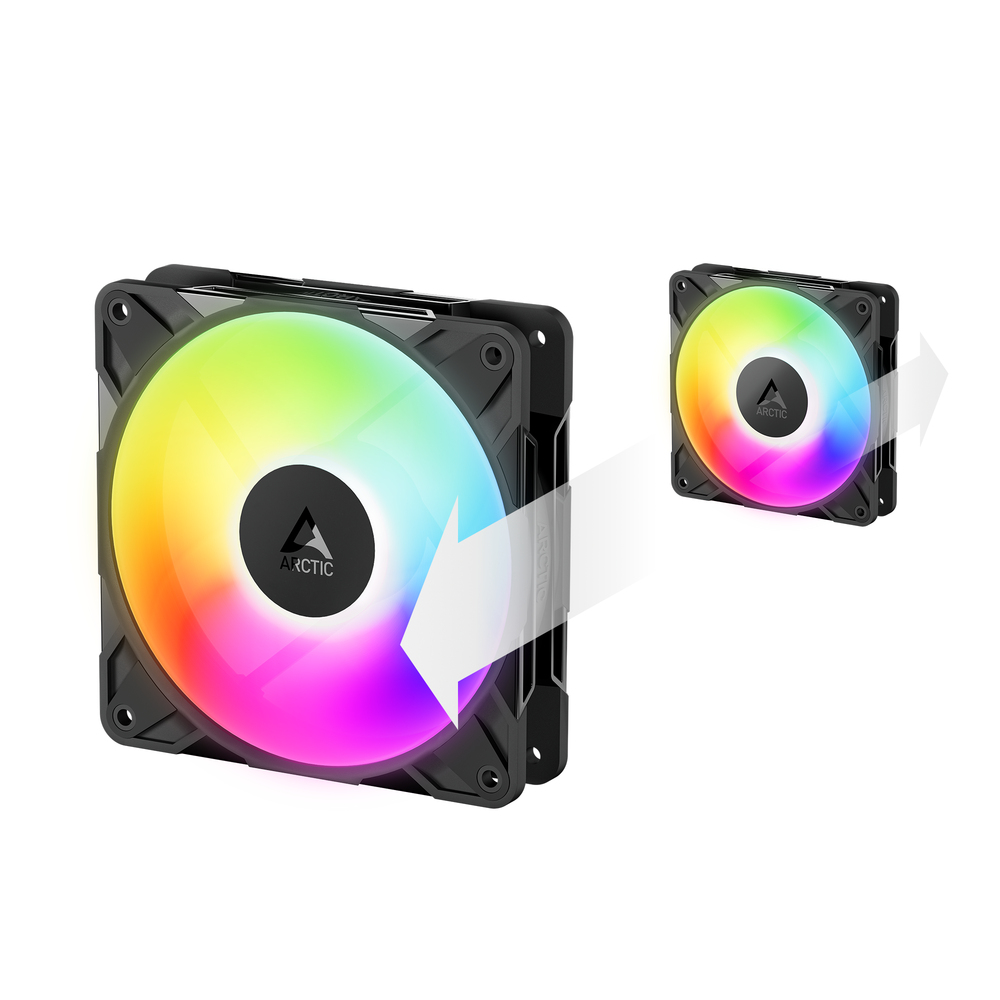

Reversed Airflow

The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.

Fan Speed
500–3000 rpm

Static Pressure
4.50 mm H2O

Bearing
Fluid Dynamic Bearing

Airflow
73 cfm | 124.03 m³/h

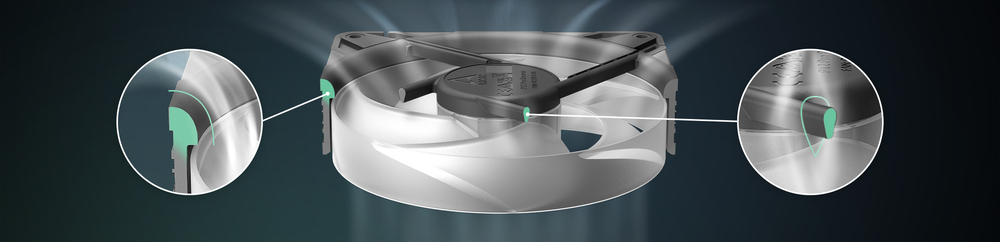

Optimized Airflow Design

The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise.

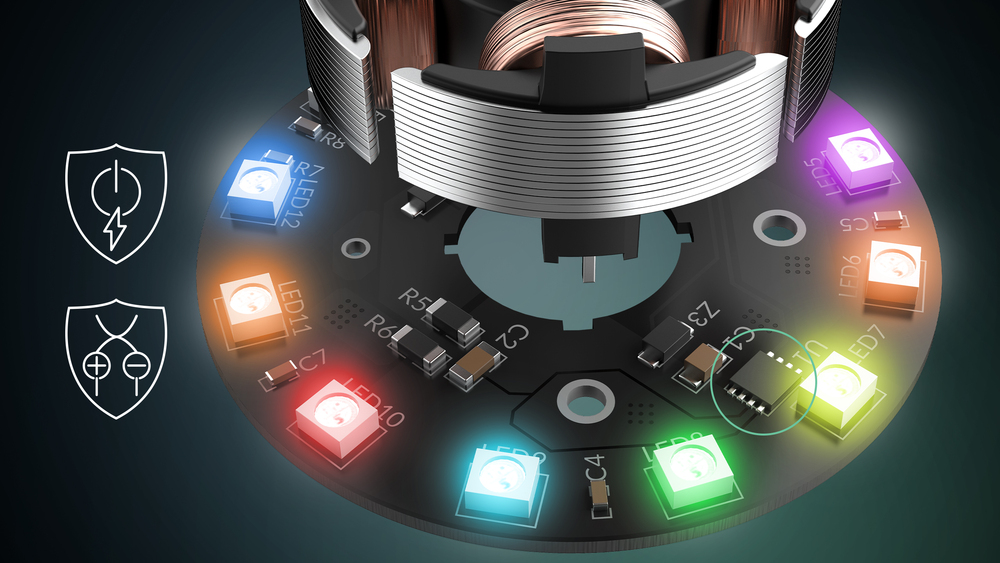

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

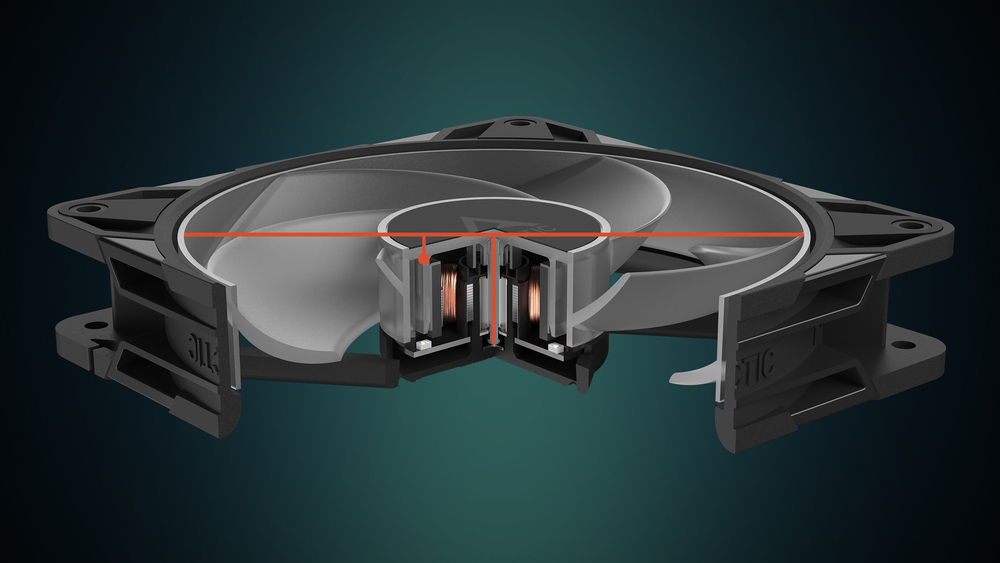

More Power – Less Noise

An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.

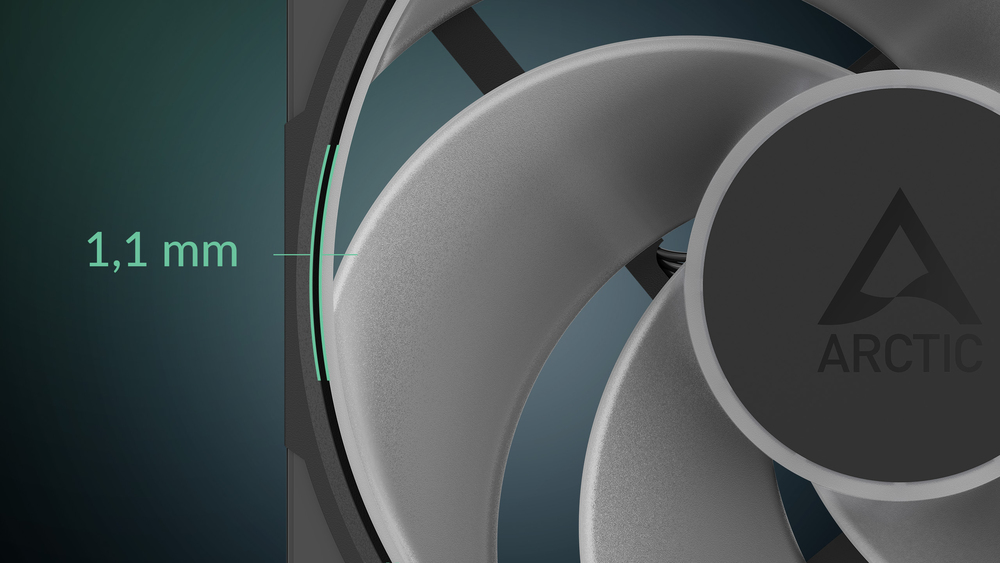

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

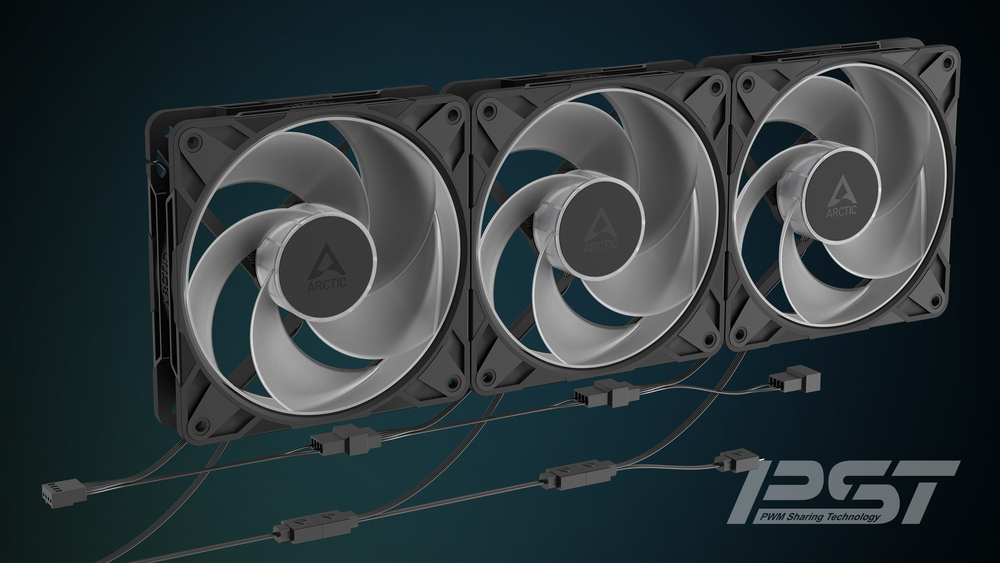

PST – Easy Cable Management and Synchronized PWM Control

Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.

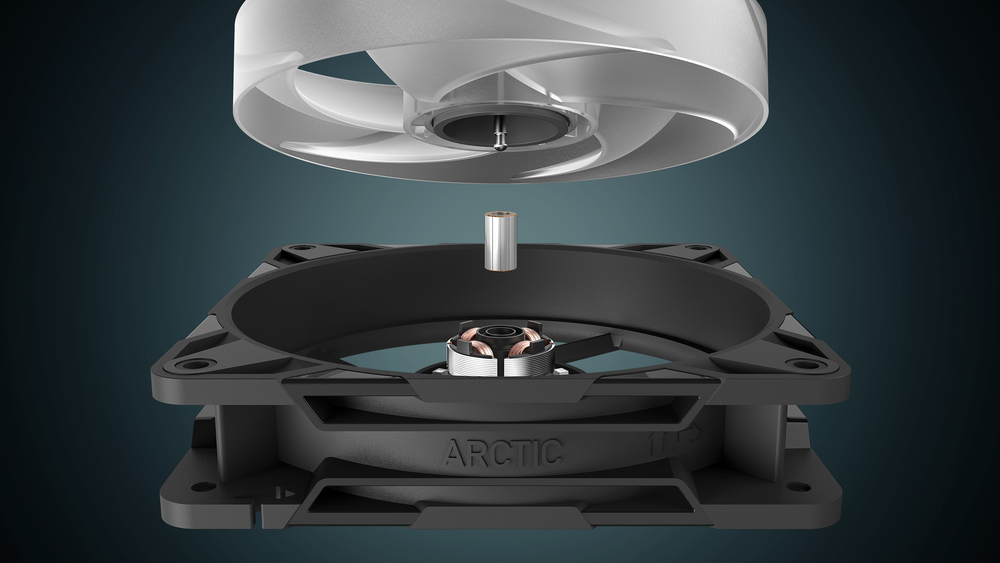

Optimized FDB Bearing-Shaft Design

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

6-Year Warranty – Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

Description

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	12 cm
Maximum airflow	73 cfm
Airflow	124 m³/h
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	5
Fan static pressure	4.5 mmH2O
Fan speed (min)	500 RPM
Fan speed (max)	3000 RPM
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Illumination colour	Multi
Product colour	Black
Cable length	0.48 m
Illumination LED	Yes
Number of fan blades	5
LED connector type	3-pin + 3-pin
Technical details
Type	Fan
Fan diameter	12 cm
Maximum airflow	73 cfm
Airflow	124 m³/h
Number of fans	1 fan(s)
Cable length	0.48 m
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Starting voltage	3.5 V
LED voltage	5 V
Fan voltage	12 V
Fan current	0.4 A

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 27 mm
Package depth	127 mm
Package width	125 mm
Package height	32 mm
Fan weight	172 g
Package weight	206 g
Cable length	0.48 m
Packaging data
Package depth	127 mm
Package width	125 mm
Package height	32 mm
Package weight	206 g
Indication
Illumination colour	Multi
Other features
LED voltage	5 V
