ARCTIC S4028-6K - 40 mm Server Fan

SKU

ACFAN00273A

£36.13 £30.11

40 mm, 250 - 6000 RPM, 7.1 CFM / 12.06 m³/h, PWM, 0.1 A/ 12.0 V DC, 5 pcs

Note: These items come from the EU which will take 7-10 days to be delivered

Free Delivery

For all orders over £99

30 Days Return

Return hassle free

Secure Payment

100% secure payment

Email an Expert

Speak to sales now

Free Shipping

For most orders
over £99 *

30 Days Return

Return hassle
free

Secure Payment

100% secure
payment

Email an expert

Speak to sales
now

Tech Specs

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	250 RPM
Rotational speed (max)	6000 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	4 cm
Maximum airflow	7.1 cfm
Maximum air pressure	4.2 mmH2O
Airflow	12.06 m³/h
Quantity per pack	5 pc(s)
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Design
Fan connector	4-pin
Product colour	Black
Cable length	0.4 m
Technical details
Type	Fan
Fan diameter	4 cm
Maximum airflow	7.1 cfm
Maximum air pressure	4.2 mmH2O
Airflow	12.06 m³/h
Cable length	0.4 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin

Power
Starting voltage	4.5 V
Voltage	12 V
Rated current	0.1 A
Colour
Product colour	Black
Weight & dimensions
Package depth	86 mm
Package width	90 mm
Package height	55 mm
Width	40 mm
Package weight	230 g
Depth	40 mm
Height	28 mm
Weight	40 g
Cable length	0.4 m
Packaging data
Package depth	86 mm
Package width	90 mm
Package height	55 mm
Package weight	230 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	20
Package type	Box

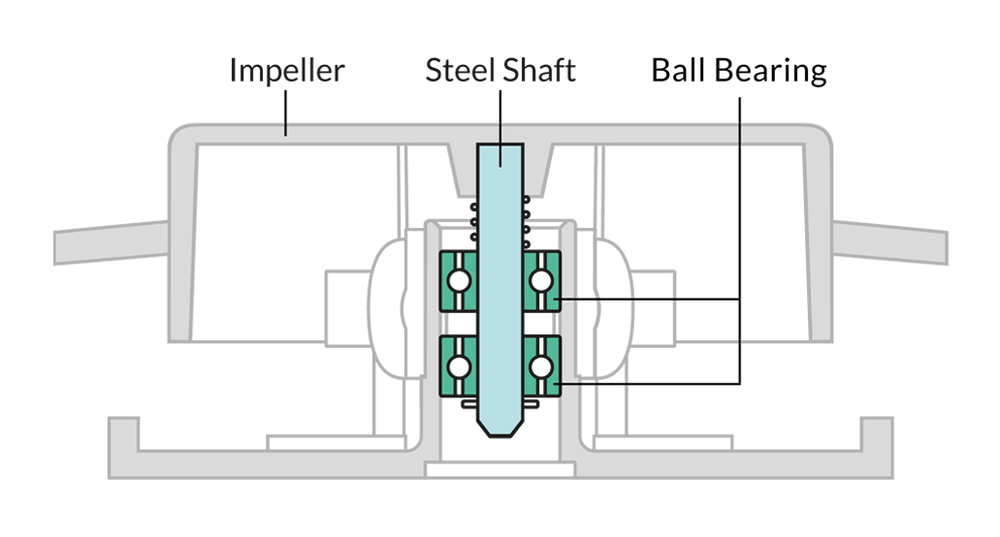

DESIGNED FOR CONTINUOUS OPERATION

The impeller of the S4028-6K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust.

FULL CONTROL WITH A WIDE SPEED RANGE

The S4028-6K has a very wide speed range that can be regulated via PWM and voltage. With its 6000 rpm max, it offers a good balance between cooling power and noise.

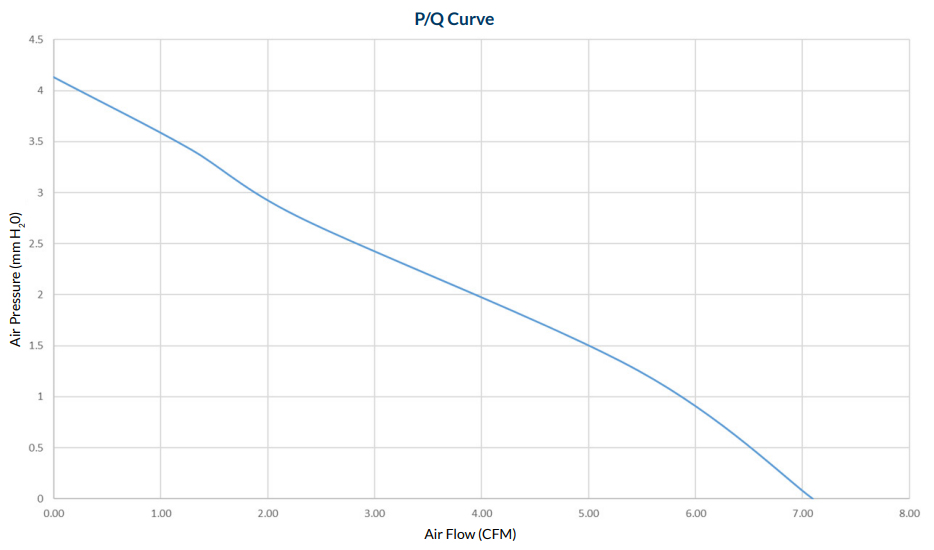

HIGH AIRFLOW AND STATIC PRESSURE

With a static pressure of 4.2 mm/H2O and a maximum airflow of 12.06 m³/h, the S4028-6K is a true all-rounder and is suitable as both a radiator and case fan.

WIDE RANGE OF APPLICATIONS

The S4028-6K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.

FLEXIBLE CONNECTION OPTIONS

The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning.

Description

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	250 RPM
Rotational speed (max)	6000 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	4 cm
Maximum airflow	7.1 cfm
Maximum air pressure	4.2 mmH2O
Airflow	12.06 m³/h
Quantity per pack	5 pc(s)
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Design
Fan connector	4-pin
Product colour	Black
Cable length	0.4 m
Technical details
Type	Fan
Fan diameter	4 cm
Maximum airflow	7.1 cfm
Maximum air pressure	4.2 mmH2O
Airflow	12.06 m³/h
Cable length	0.4 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin

Power
Starting voltage	4.5 V
Voltage	12 V
Rated current	0.1 A
Colour
Product colour	Black
Weight & dimensions
Package depth	86 mm
Package width	90 mm
Package height	55 mm
Width	40 mm
Package weight	230 g
Depth	40 mm
Height	28 mm
Weight	40 g
Cable length	0.4 m
Packaging data
Package depth	86 mm
Package width	90 mm
Package height	55 mm
Package weight	230 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	20
Package type	Box
