ARCTIC S8038-7K - 80 mm Server Fan

SKU

ACFAN00288A

£12.78 £10.65

80 mm, 500-7000 RPM PWM, DBB, 70 cfm, 118.93 m³/h, 25 mmH2O, 12 VDC, 0.5 A, 1 pcs

Note: These items come from the EU which will take 7-10 days to be delivered

Free Delivery

For all orders over £99

30 Days Return

Return hassle free

Secure Payment

100% secure payment

Email an Expert

Speak to sales now

Free Shipping

For most orders
over £99 *

30 Days Return

Return hassle
free

Secure Payment

100% secure
payment

Email an expert

Speak to sales
now

Tech Specs

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Dual ball bearing
Type	Fan
Operating temperature (T-T)	-10 - 70 °C
Fan diameter	8 cm
Maximum airflow	70 cfm
Airflow	118.93 m³/h
Rack capacity	2U
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	5
Fan static pressure	25 mmH2O
Fan speed (min)	500 RPM
Fan speed (max)	7000 RPM
Design
Fan connector	4-pin
Rack capacity	2U
Number of fans	1 fan(s)
Product colour	Black
Cable length	0.3 m
Number of fan blades	5
Technical details
Type	Fan
Fan diameter	8 cm
Maximum airflow	70 cfm
Airflow	118.93 m³/h
Rack capacity	2U
Number of fans	1 fan(s)
Cable length	0.3 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Starting voltage	3.6 V
Fan voltage	12 V
Fan current	0.5 A

Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	80 x 80 x 38 mm
Package depth	88 mm
Package width	86 mm
Package height	44 mm
Fan weight	146 g
Package weight	174 g
Cable length	0.3 m
Packaging data
Package depth	88 mm
Package width	86 mm
Package height	44 mm
Package weight	174 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Package type	Box

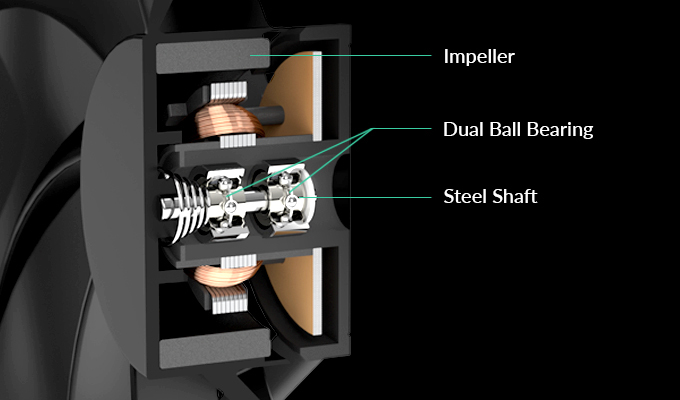

Designed for Continuous Operation

The impeller of the S8038-7K is held in place by two ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust.

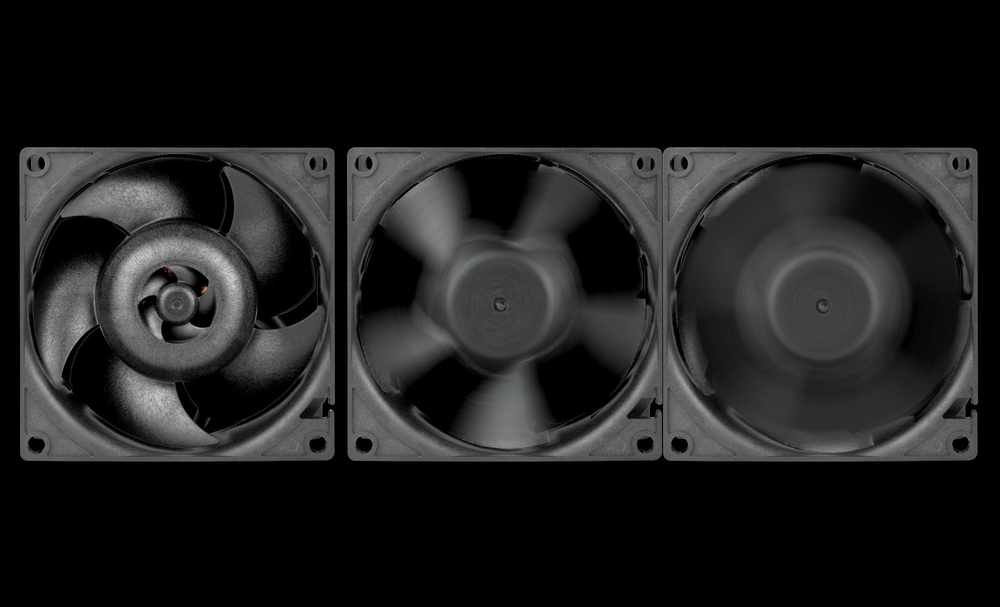

Full Control with a Wide Speed Range

The S8038-7K has a wide speed range that can be regulated via PWM and voltage, allowing it to be tuned to the specific system requirement. With a wide speed range from 500 rpm to 7000 rpm, it provides an ideal balance between cooling performance and noise, ensuring optimal performance in various scenarios.

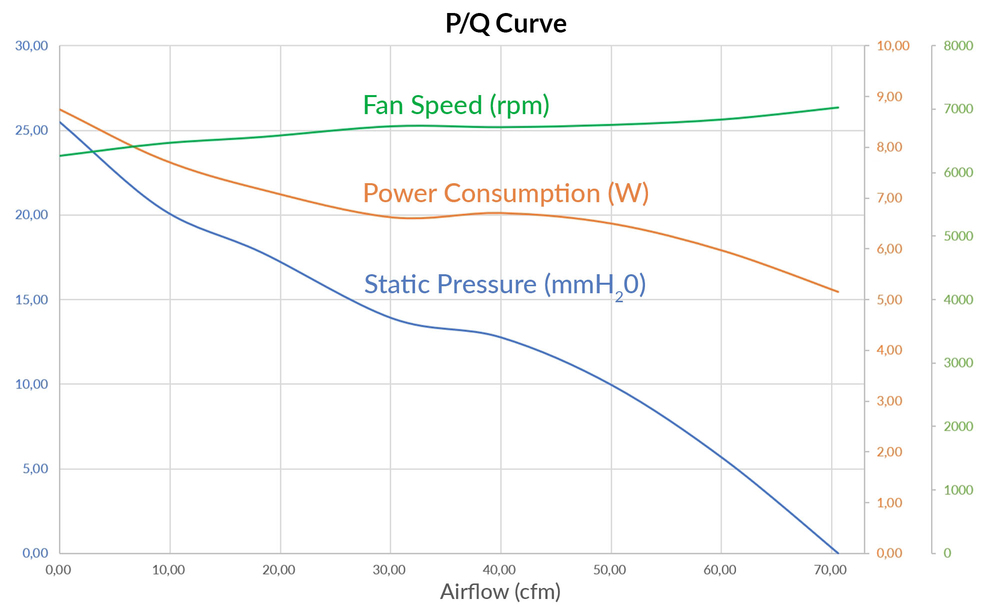

High Airflow and Static Pressure

Heat sinks and radiators benefit from fans with high static pressure. The S8038-7K has a static pressure of 25 mm/H2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 118.93 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.

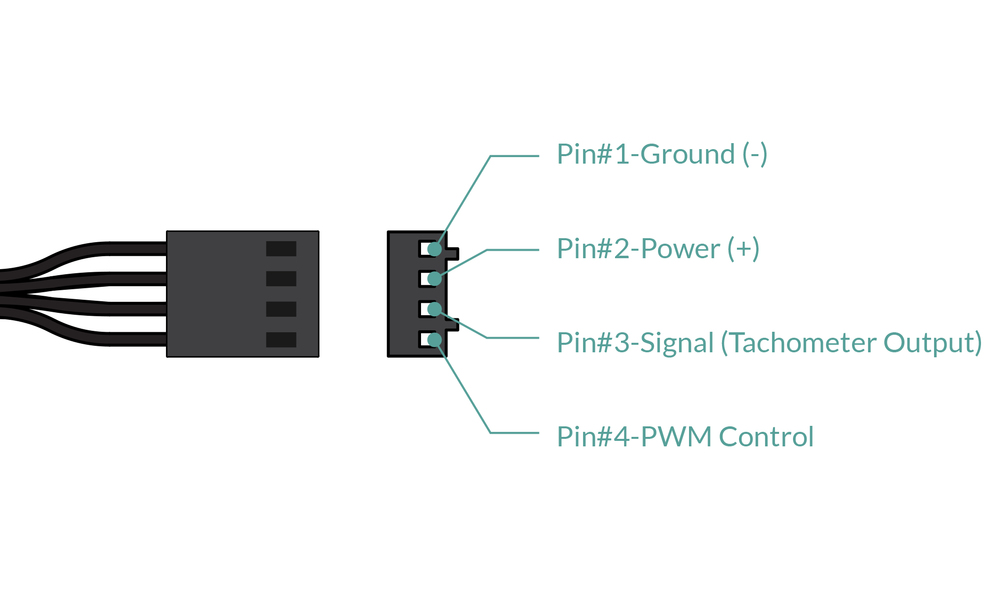

Flexible Connection Options

With its standard 4-pin fan connector, the S8038-7K can also be connected to 2-pin or 3-pin sockets, and then be controlled by voltage. The 30 cm cable allows a lot of flexibility in positioning.

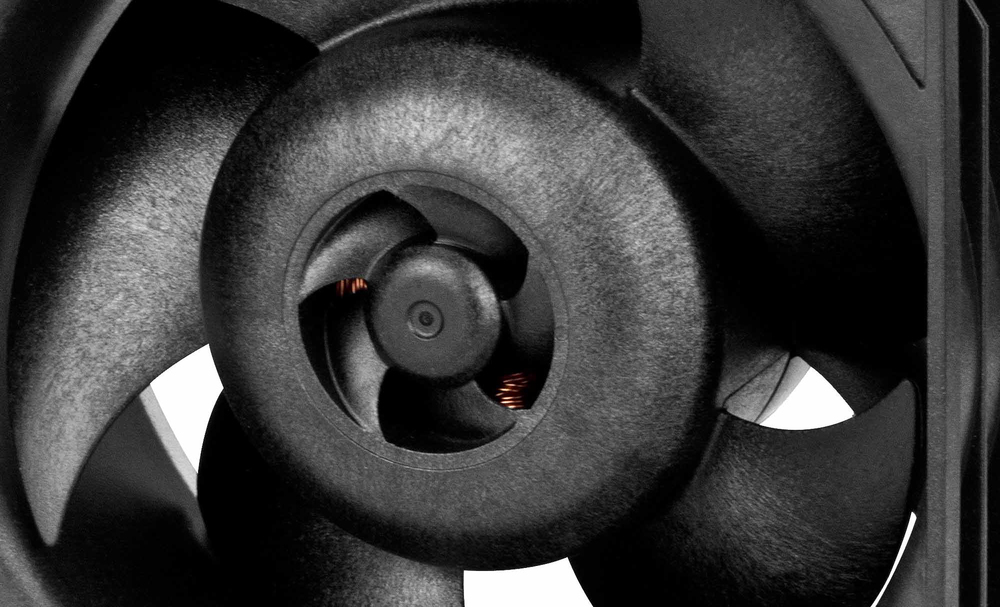

Active Cooling for Extended Motor Lifespan

The lifespan of fans is mostly determined by the lifespan of the motor, which is significantly dependent on the motor temperature, especially in long-term operation. The motor of the S8038-7K is actively cooled by an additional impeller in the fan hub. By maintaining lower motor temperatures, its lifespan is extended by up to 50 %. This advance not only leads to improved operating efficiency, but also to significant cost savings in the long run.

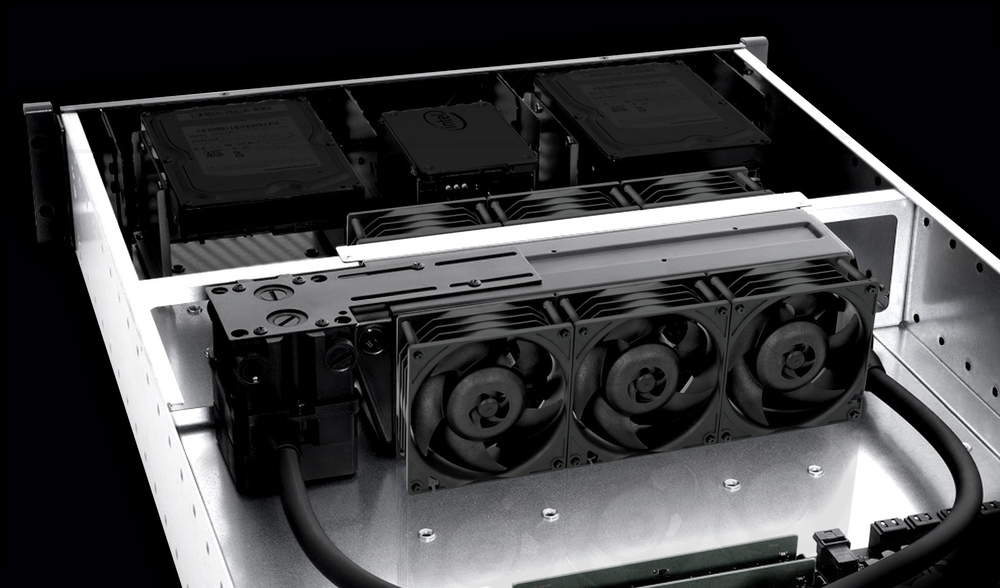

Wide Range of Applications

The S8038-7K fits into 2U server cases and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimal downtime.

Description

ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Dual ball bearing
Type	Fan
Operating temperature (T-T)	-10 - 70 °C
Fan diameter	8 cm
Maximum airflow	70 cfm
Airflow	118.93 m³/h
Rack capacity	2U
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	5
Fan static pressure	25 mmH2O
Fan speed (min)	500 RPM
Fan speed (max)	7000 RPM
Design
Fan connector	4-pin
Rack capacity	2U
Number of fans	1 fan(s)
Product colour	Black
Cable length	0.3 m
Number of fan blades	5
Technical details
Type	Fan
Fan diameter	8 cm
Maximum airflow	70 cfm
Airflow	118.93 m³/h
Rack capacity	2U
Number of fans	1 fan(s)
Cable length	0.3 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Starting voltage	3.6 V
Fan voltage	12 V
Fan current	0.5 A

Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	80 x 80 x 38 mm
Package depth	88 mm
Package width	86 mm
Package height	44 mm
Fan weight	146 g
Package weight	174 g
Cable length	0.3 m
Packaging data
Package depth	88 mm
Package width	86 mm
Package height	44 mm
Package weight	174 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Package type	Box
